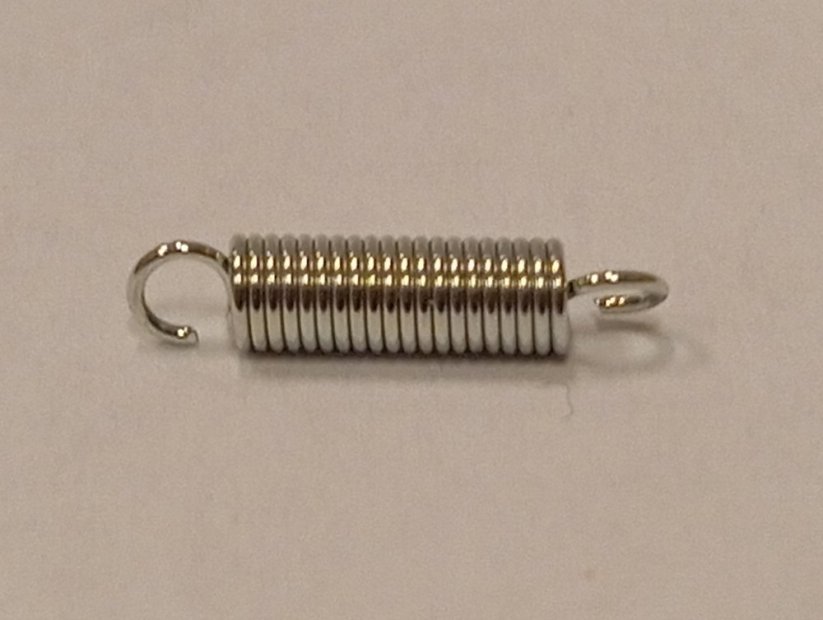

Tension spring 0.4x2.8x12.4
Tension spring 0.4x2.8x12.4 More
Product code: 0,4x2,8x12,4 Shipping and Payment
Tension spring 0.4x2.8x12.4
Parameters
| Spring type | Tension spring |
|---|---|
| Material | Spring steel+zinc surface treatment |
| Wire diameter - d | 0.40mm |
| Outer diameter of spring - D1 | 2,8 |
| Free spring length - L0 | 12,4 |
| Length of threaded part Lz | 8,4 |
| Preload | 0,68 |
| Spring length in extended state L8 | 19,5 |
| Spring force in the stretched state in Newtons | 7,3 |
Download
tažné pružiny katalog.pdf (pdf, 1.5 MB)
