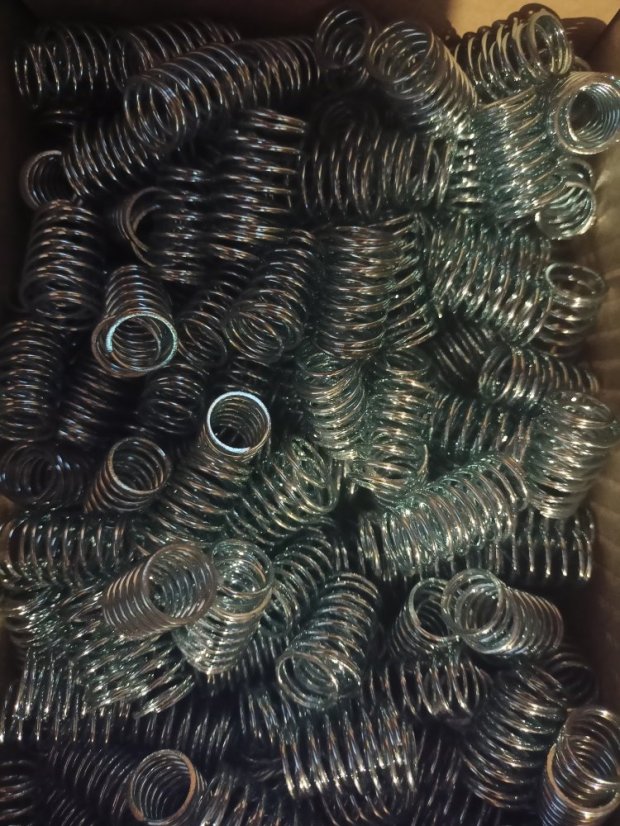

Compression spring 1,25x14,1x22x7,25
Compression spring 1,25x14,1x22x7,25 More
Product code: 1,25x14,1x22 Shipping and Payment
Compression spring 1,25x14,1x22x7,25
Parameters
| Spring type | Compression spring |
|---|---|
| Material | Spring steel+zinc surface treatment |
| Wire diameter - d | 1.25mm |
| Outer diameter of spring - D1 | 14,1 |
| Free spring length - L0 | 22 |
| Spring stiffness c (N/mm) | 2,23 |
| Total number of threads - from | 7,25 |
| Spring length in compressed state L8 | 12,94 |
| Number of active threads - n | 5,25 |
| Spring force in compressed state in Newtons | 28,85 |
Download
tlačné pružiny katalog.pdf (pdf, 1.1 MB)
