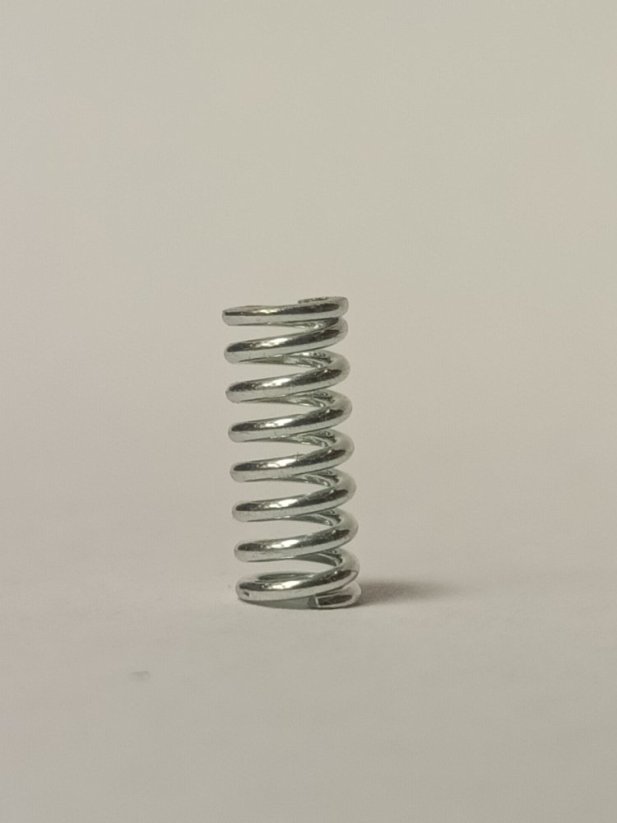

compression spring 0,63x3,8x9
compression spring 0,63x3,8x9 More
Product code: 0,63x3,8x9 Shipping and Payment
compression spring 0,63x3,8x9
Parameters
| Spring type | Compression spring |
|---|---|
| Material | Spring steel+zinc surface treatment |
| Wire diameter - d | 0.63mm |
| Outer diameter of spring - D1 | 3,8 |
| Free spring length - L0 | 9 |
| Spring stiffness c (N/mm) | 7,80 |
| Total number of threads - from | 8,5 |
| Spring length in compressed state L8 | 6,3 |
| Number of active threads - n | 6,5 |
| Spring force in compressed state in Newtons | 20,8 |
Download
tlačné pružiny katalog.pdf (pdf, 1.1 MB)
