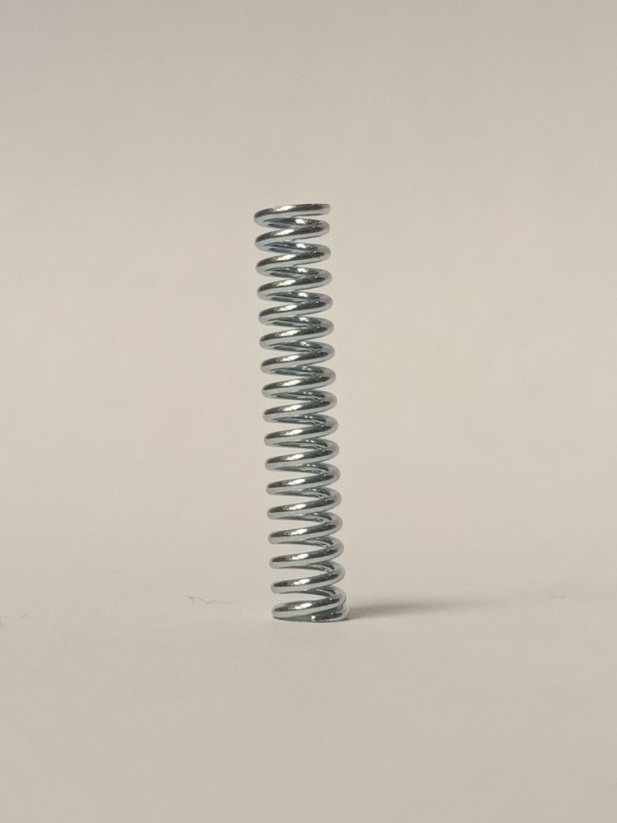

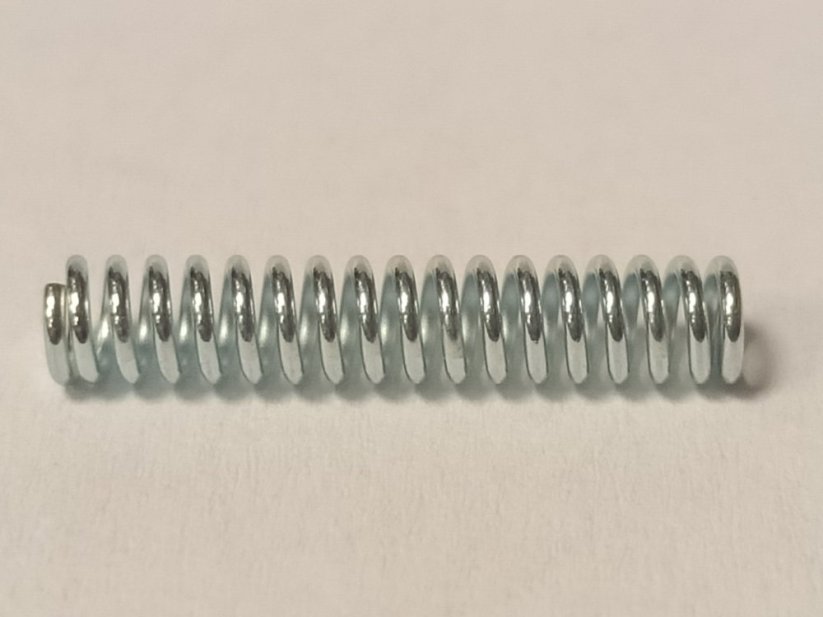

compression spring 0,63x3,8x20

compression spring 0,63x3,8x20 More

Product code: 0,63x3,8x20 Shipping and Payment

Parameters

Spring type	Compression spring
Material	Spring steel+zinc surface treatment
Wire diameter - d	0.63mm
Outer diameter of spring - D1	3,8
Free spring length - L0	20
Spring stiffness c (N/mm)	3,27
Total number of threads - from	17,5
Spring length in compressed state L8	13,6
Number of active threads - n	15,5
Spring force in compressed state in Newtons	20,8
